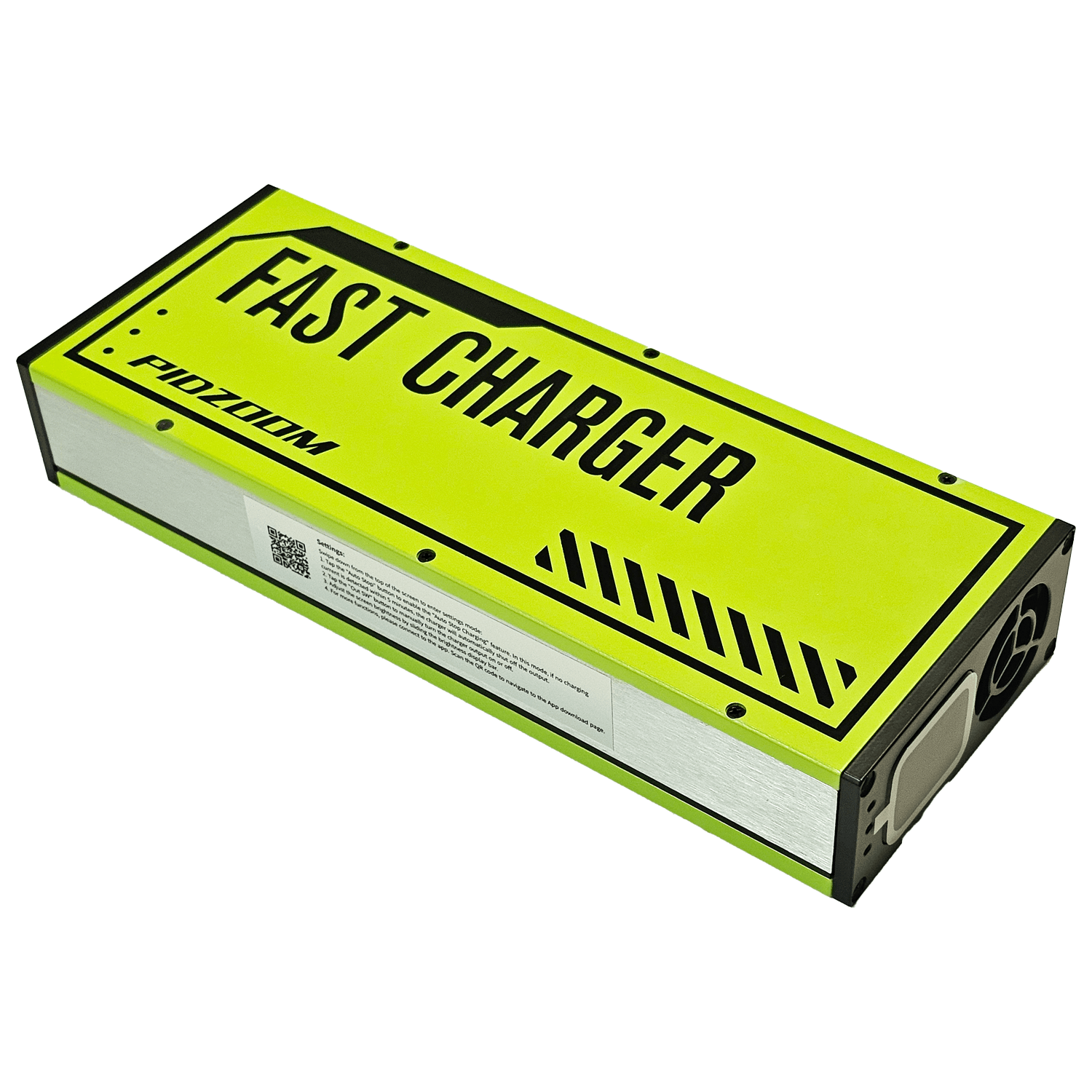

Chargeur portable HW170P (50-170 V)
Ce chargeur rapide à tension variable haute performance a été conçu à l'origine pour les stations de base cellulaires Huawei et a été optimisé pour une large gamme d'applications, notamment les EUC, les scooters, les vélos électriques et les planches à foil électronique.
Il prend en charge une large plage d'entrée de 110 V à 240 V CA et est disponible en deux variantes :
1. Sortie CC 120–170 V
- Courant maximal : 14 A (8 A à une entrée CA 110 V)
- Puissance maximale : 2 000 W (1 000 W à une entrée CA 110 V)
2. Sortie CC 50–70 V
- Courant maximal : 30 A (20 A à une entrée CA 110 V)
- Puissance maximale : 2 000 W (1 000 W à une entrée CA 110 V)
Our typical shipping time is 7-10 business days.
READ BEFORE USE
instruction
- Plug In Charger: Connect the charger to a power outlet before connecting it to the battery.

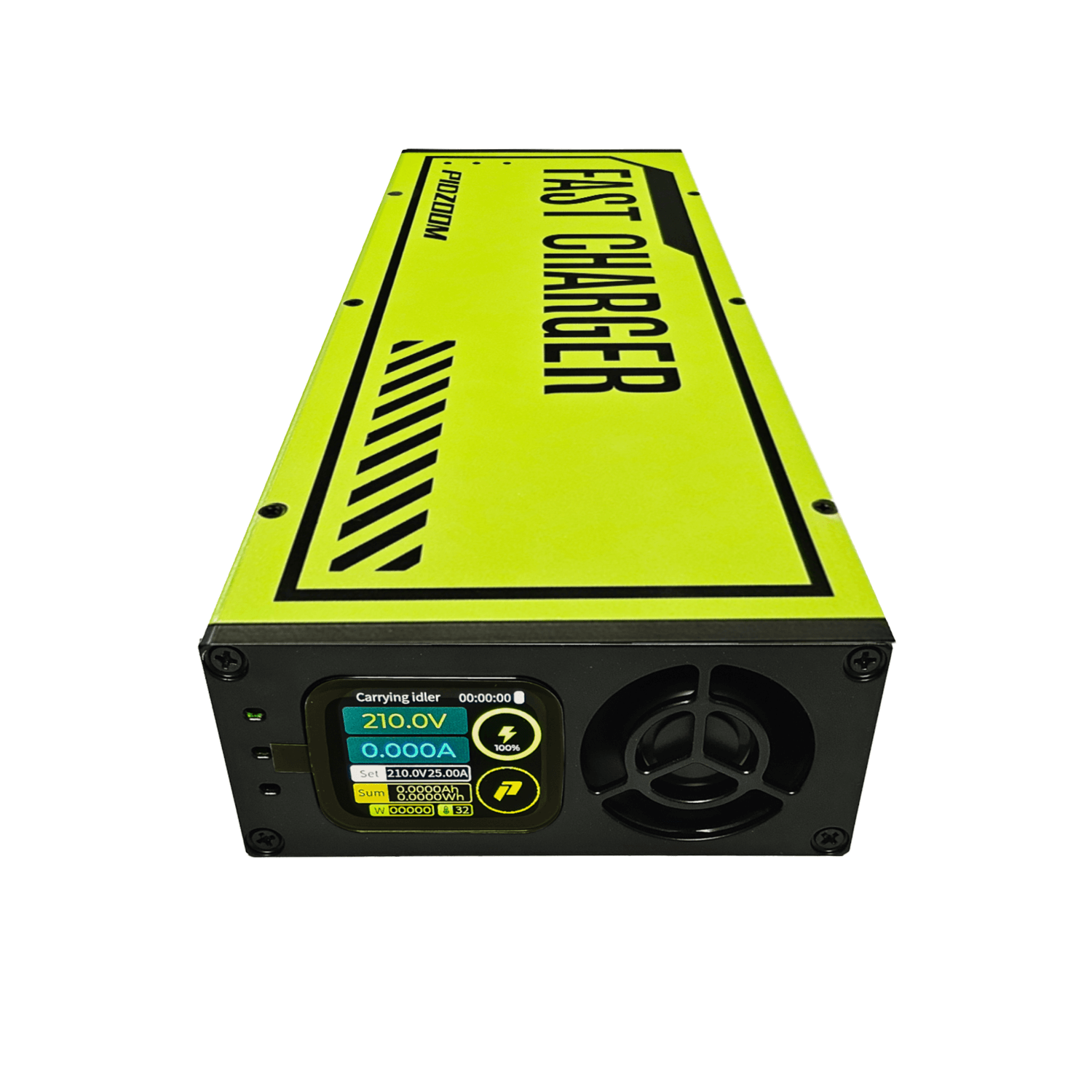

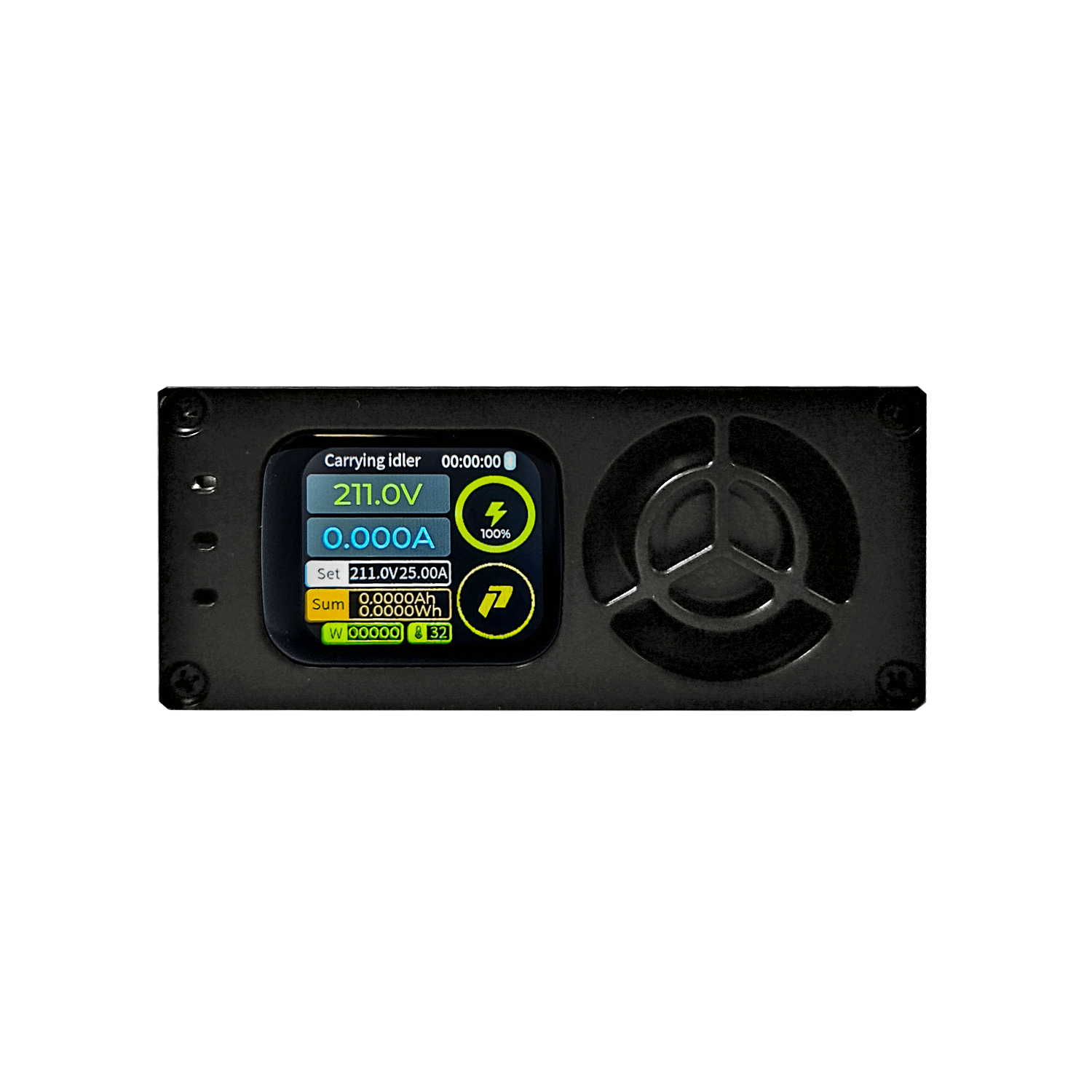

- Preset Voltage: Long press the voltage block on the display to input the desired value, then tap ✔ to save.
- Preset Current: Long press the current block on the display to input the desired value, then tap ✔ to save. Avoid surpassing the max charging rate of your battery.
- Turn on the Output: Make sure the output is on.
- Connect PEV: Plug the charger into the battery charge port and start charging.
SETTINGS:
Swipe down from the top of the screen to enter settings mode:
- Tap the "Auto Stop" button to enable the "Auto Stop Charging" feature. In this mode, if no charging current is detected within 5 minutes, the charger will automatically shut off the output.
- Tap the "Out SW" button to manually turn the charger output on or off.
- Adjust the screen brightness by sliding the brightness display bar.
- For more functions, please connect to the app.
- App download:
- Android: Download.
- IOS: Alipay. Search this link in Alipay: https://ur.alipay.com/_5X0C6rOaSroDO3kKCEieXR
Product specification
- 25A (For input > AC 200V)
- 14A (For input < AC 200V)
10.8*4.13*1.8 inches (275*105*46mm)
4.5 lbs (2 kg)

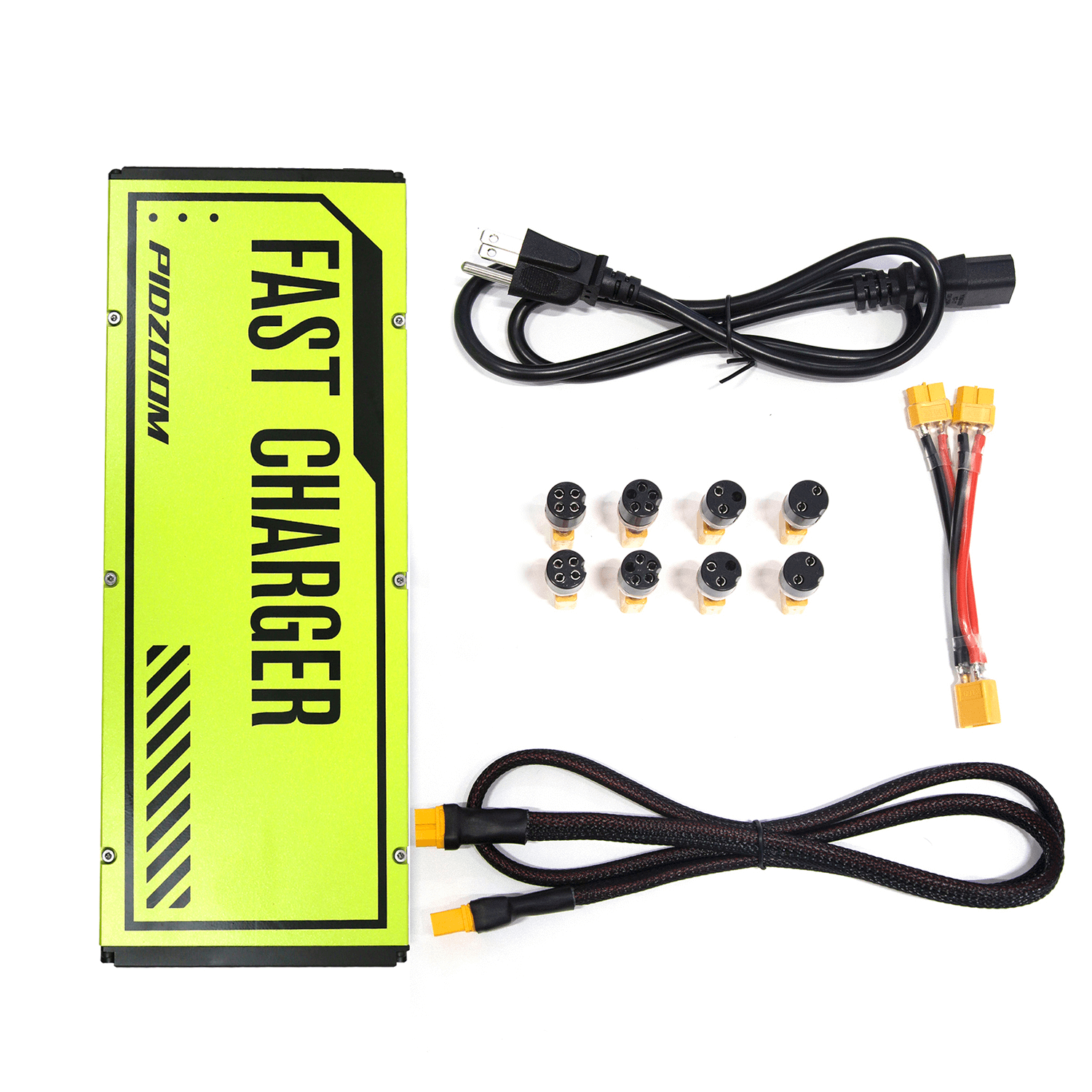

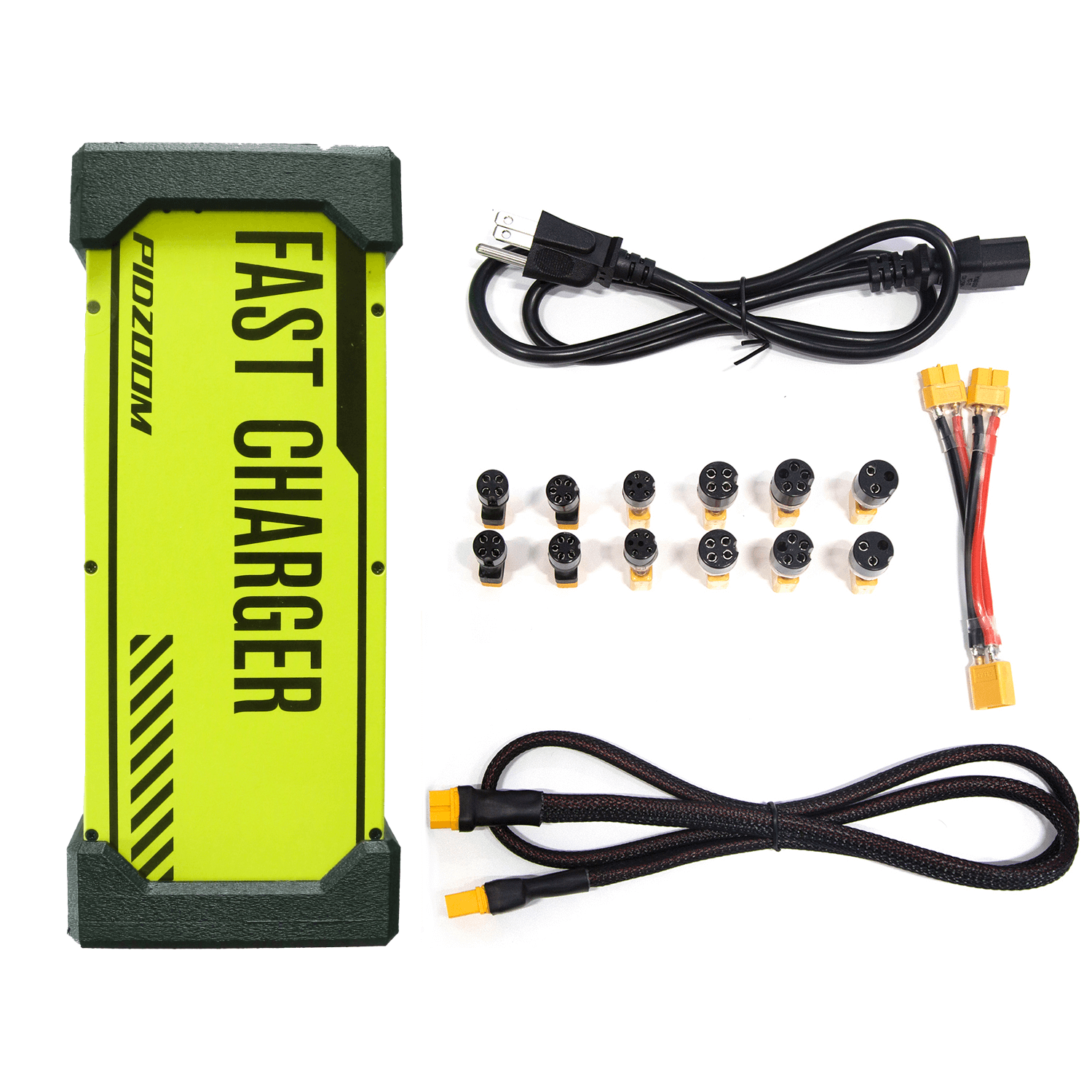

ADAPTERS LAYOUT
WHICH CHARGERS ARE MADE FOR YOU?
compare & pick
DC 150-212V
- DC 126-178V
- DC 50-70V
DC 84-170V
- 25A(AC 220V)
- 14A(AC 110V)
- Variant 126-178V: 14A(8A at AC 110V)
- Variant 50-70V: 30A(20A at AC 110V)
- 10A(AC 220V)
- 6A(AC 110V)
10.8*4.13*1.8 inches (275*105*46mm)
8.3*3.7*1.8 inches (211*95*46mm)
8.3*3.7*1.8 inches (211*95*46mm)
4.5 lbs (2 kg)
3 lbs (1.38 kg)
3 lbs (1.38 kg)
AC 110V-240V
AC 110V-240V
AC 110V-240V
- 4200W(AC 220V)
- 2100W(AC 110V)
- 2000W(AC 220V)
- 1000W(AC 110V)
- 2000W(AC 220V)
- 1000W(AC 110V)
