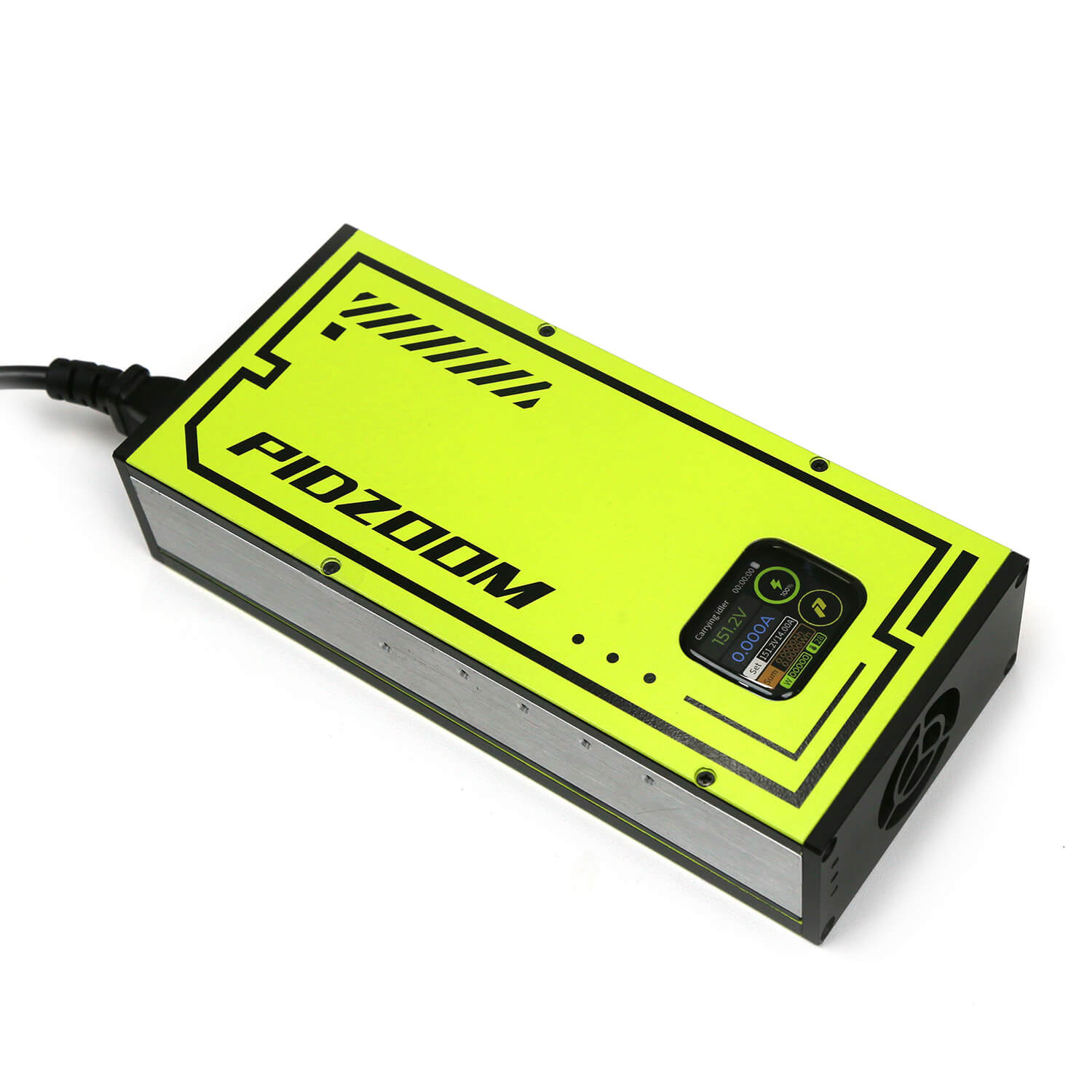

PIDZOOM Fast Charger HW170W: 40-178V, Max 3000W for PEVs

This fast charger was originally designed for cellular base stations from Huawei, now optimized for versatile use, including EUCs, scooters, ebikes and mopeds. Engineered for long-term consistency, this charger boasts reliability and adaptability.

Supporting an input range of AC 110V-240V, output range of DC 40-178V, this fast charger effortlessly fits into various power environments. Experience a maximum output of 3000W(max output 18A) for inputs above AC 200V, while delivering a maximum of 1500W(max output 10A) at AC 110V input.

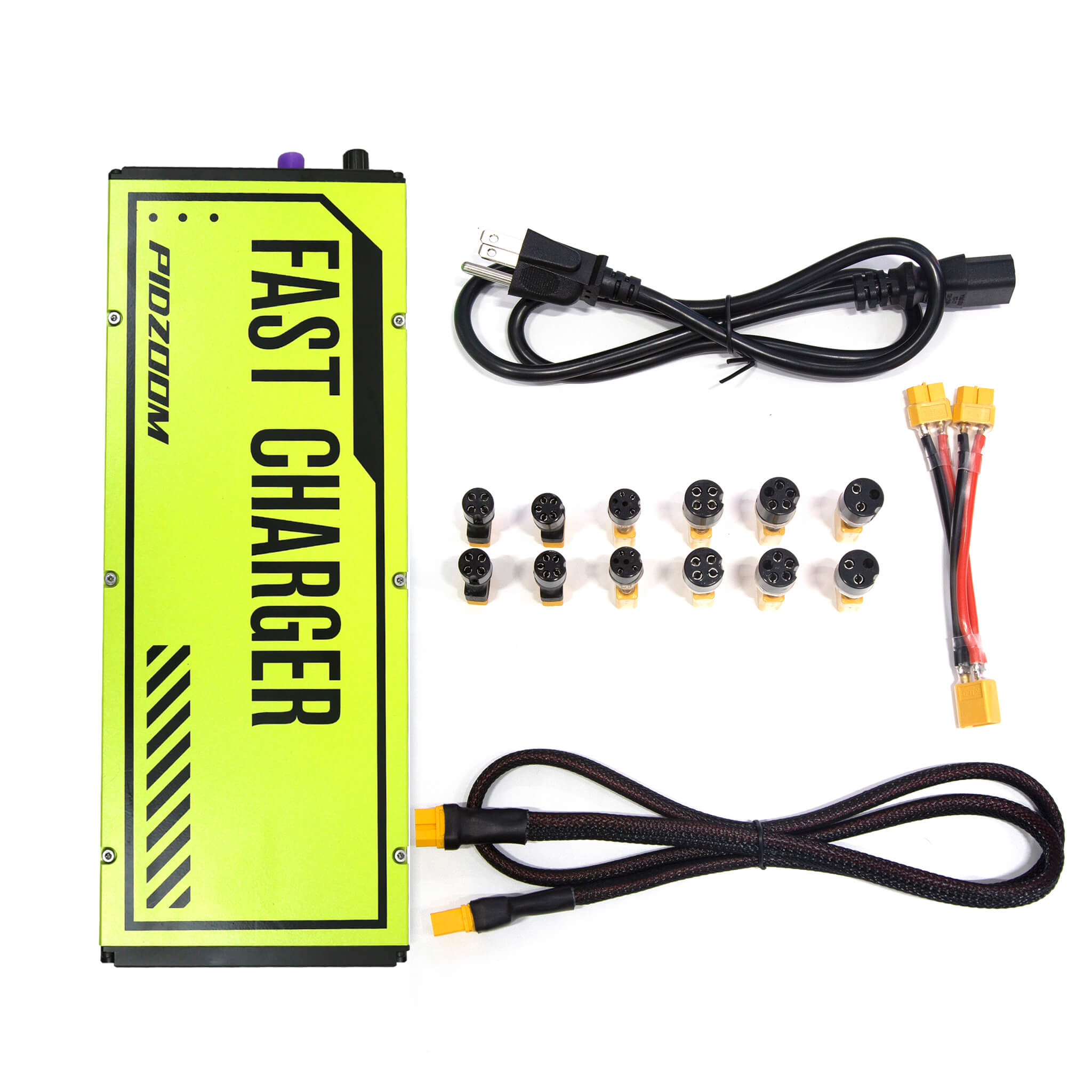

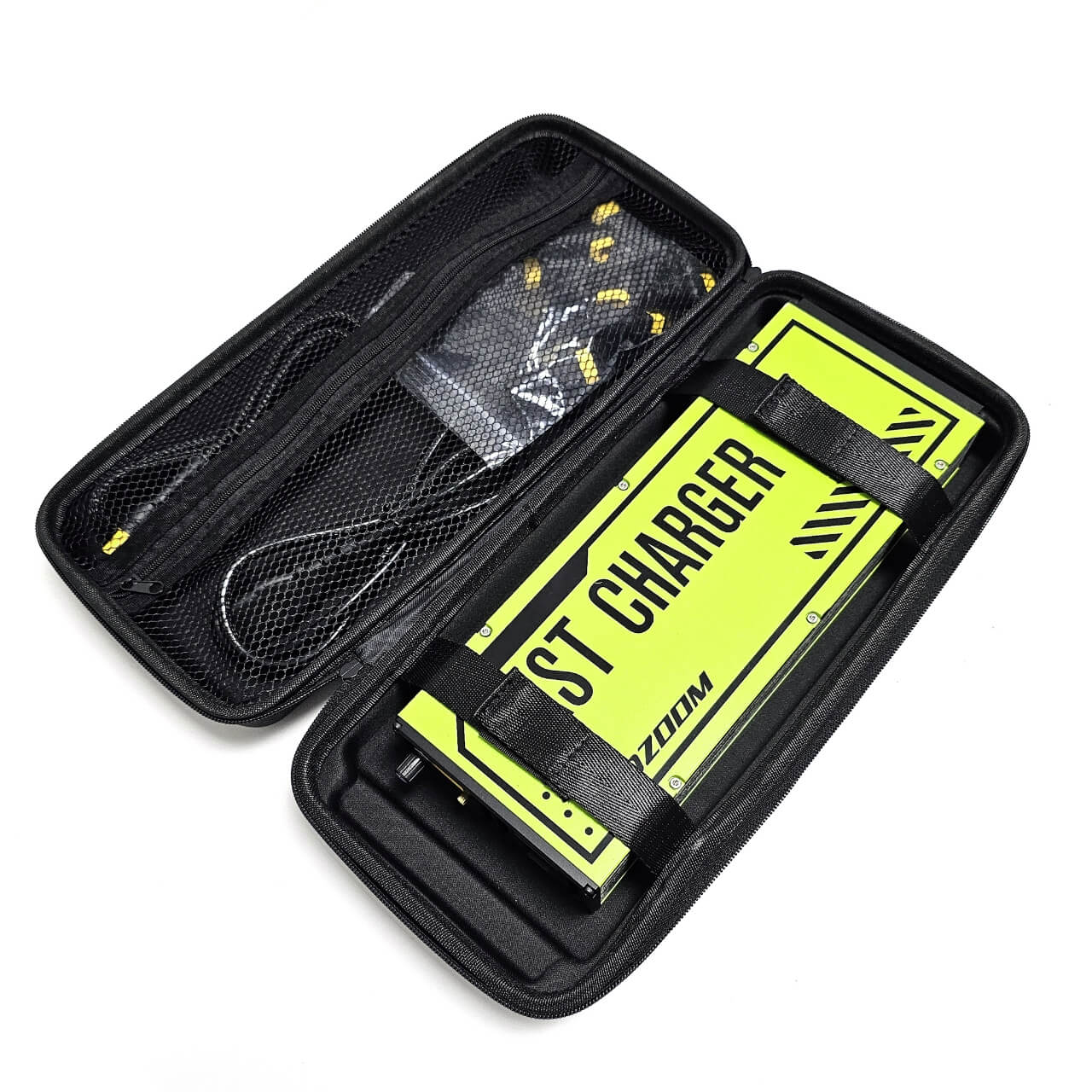

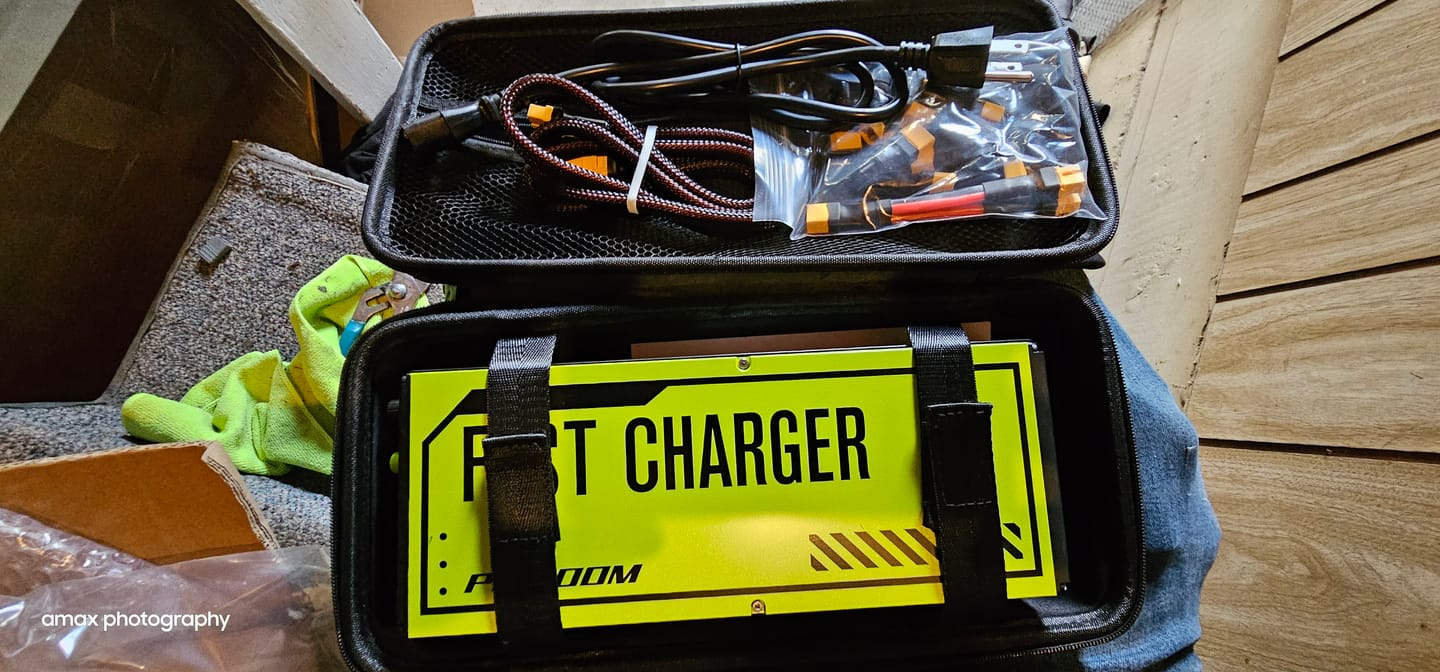

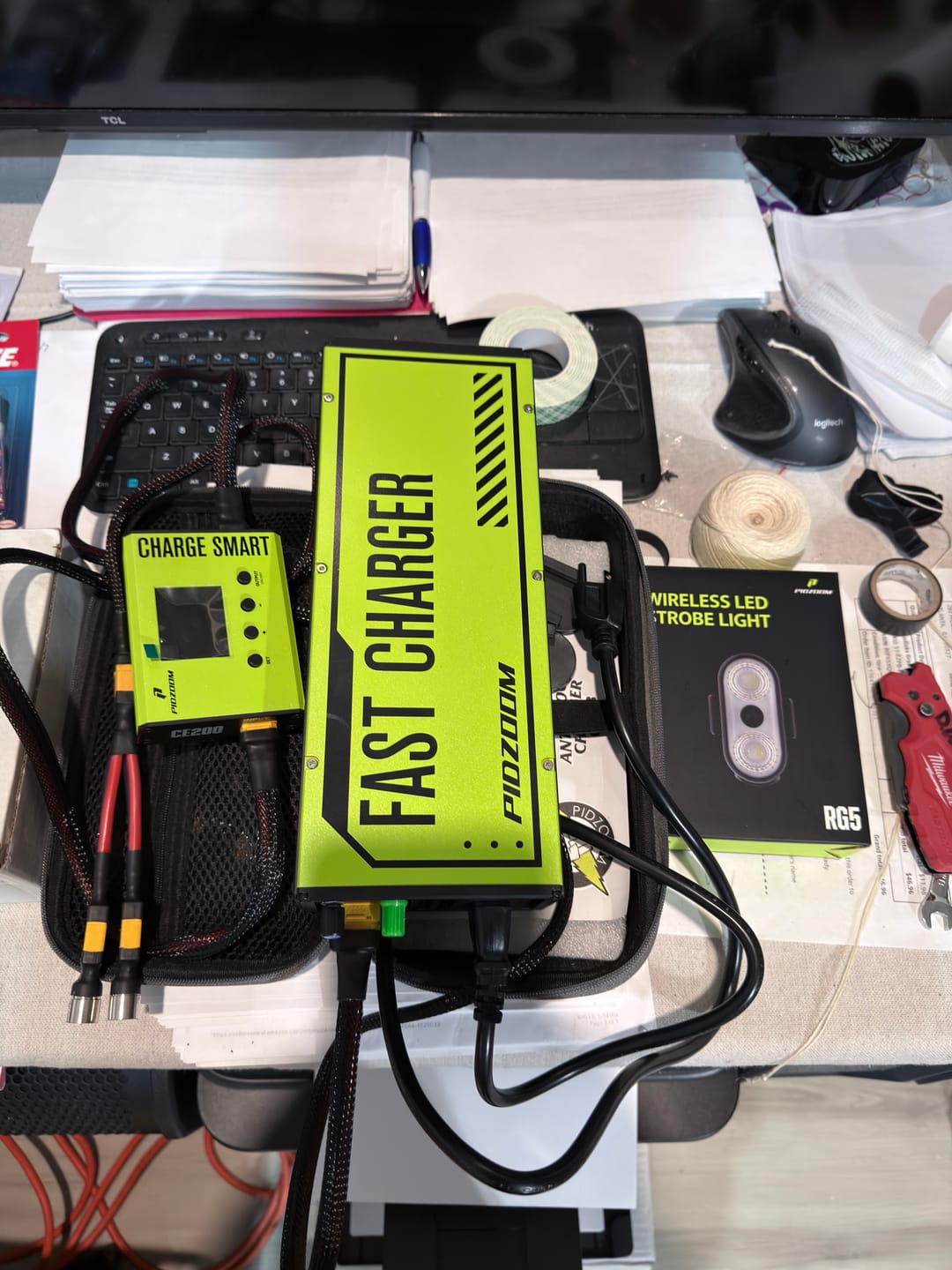

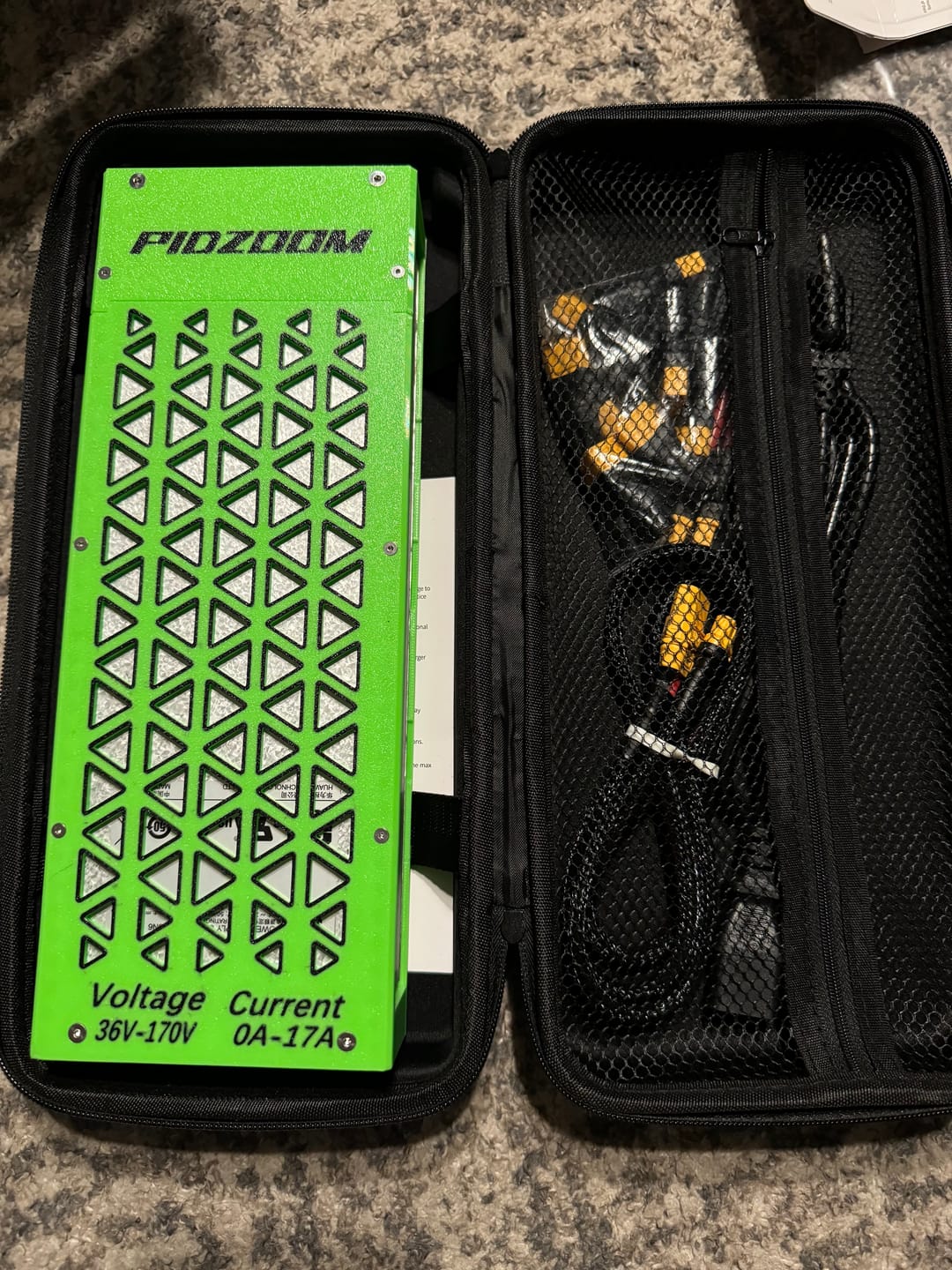

Packing List: Fast charger x 1, Protective Green Casing x 1, Split Pigtail * 1, Power cord *1(EU or North American standard) Adapter set: up to your selection.

Note: EUC Adapters Kit includes: 6 sets of adapters(GX16-4, GX16-5, GX16-6, GX20-3, GX20-4, GX20-5)

Need more extra adapters, please get it here Selection Guide.

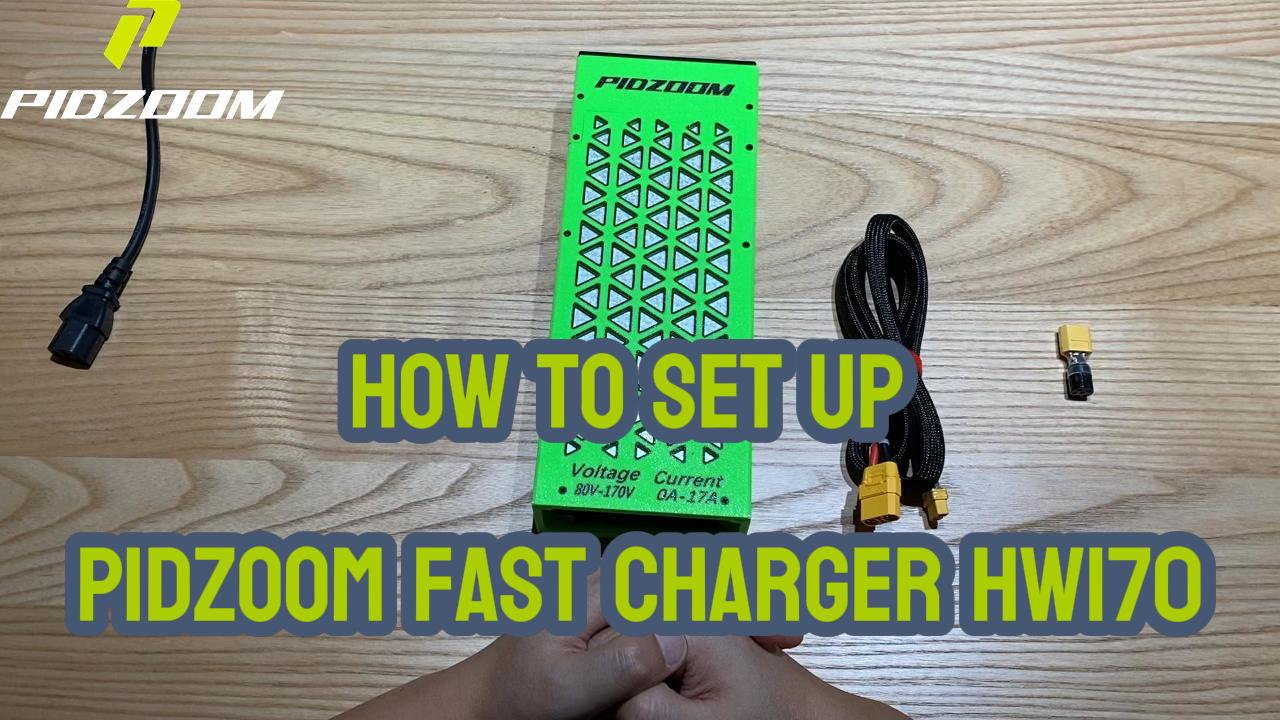

INSTRUCTION

Plug In Charger:
Connect the charger to a power outlet before connecting it to the PEV.
Select Preset Voltage for PEV:

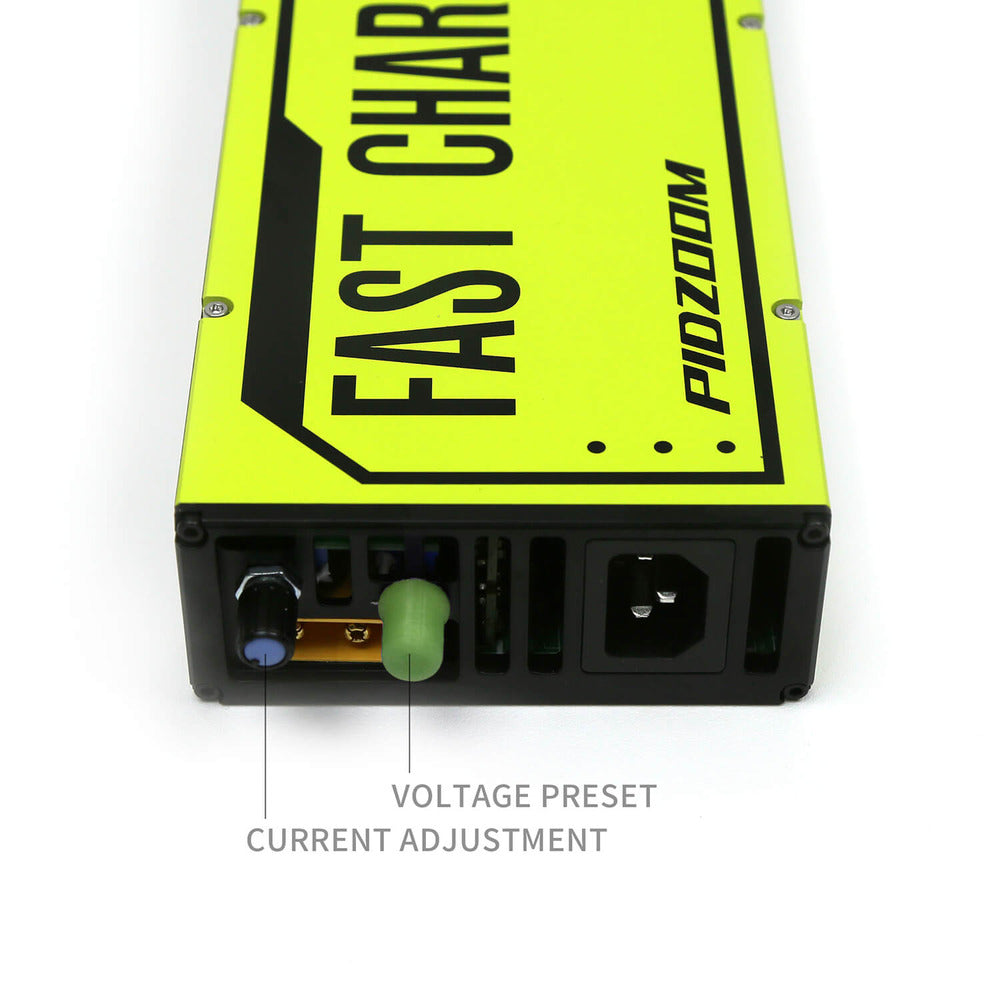

Choose the correct voltage for your PEV using the voltage preset selector knob at the charger's rear.
Set Initial Current:
Rotate Current Adjustment Knob counter-clockwise (from the rear view) until the knob stops. The display will read 0 Amps.

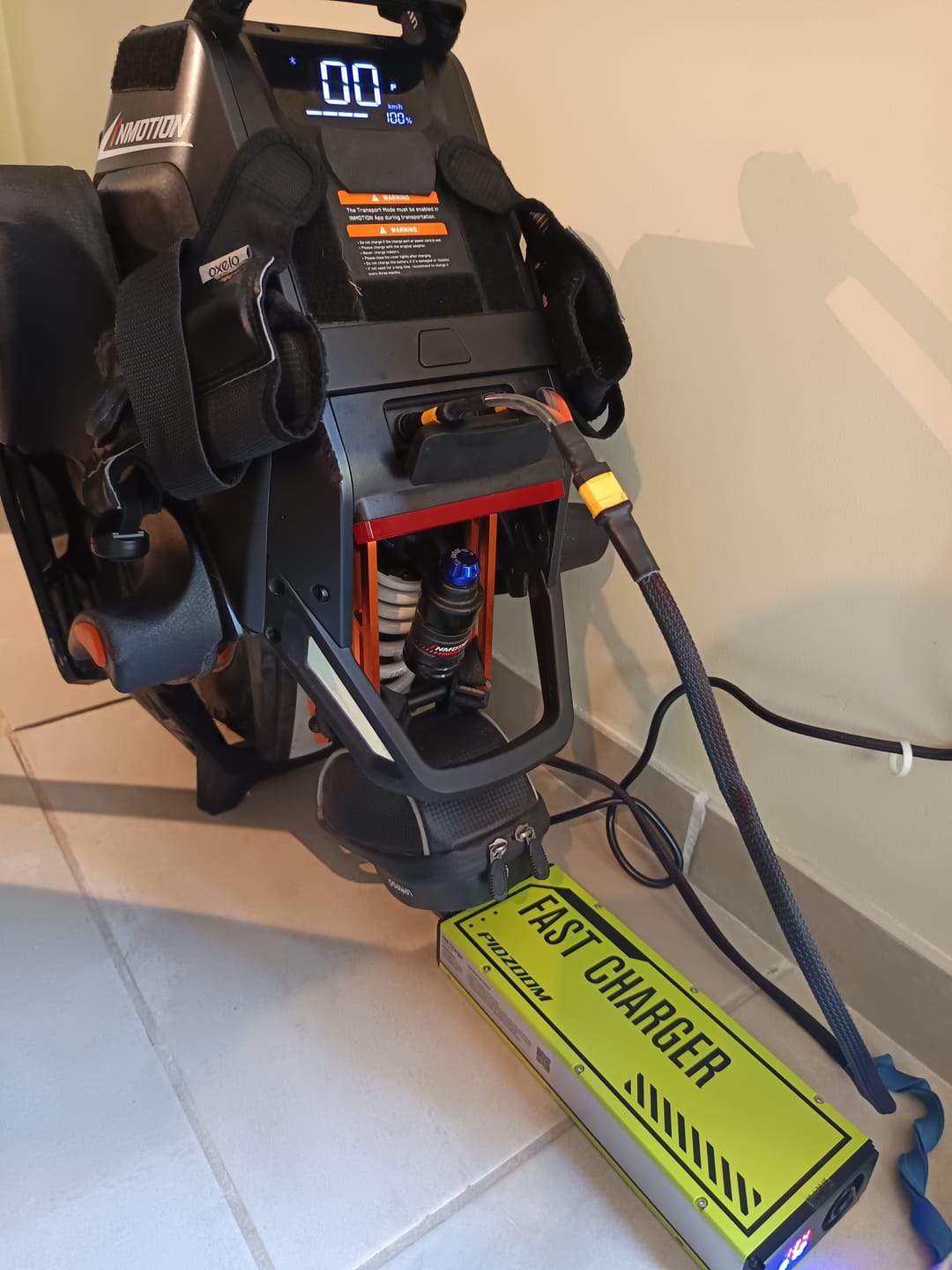

Connect Charger to PEV:

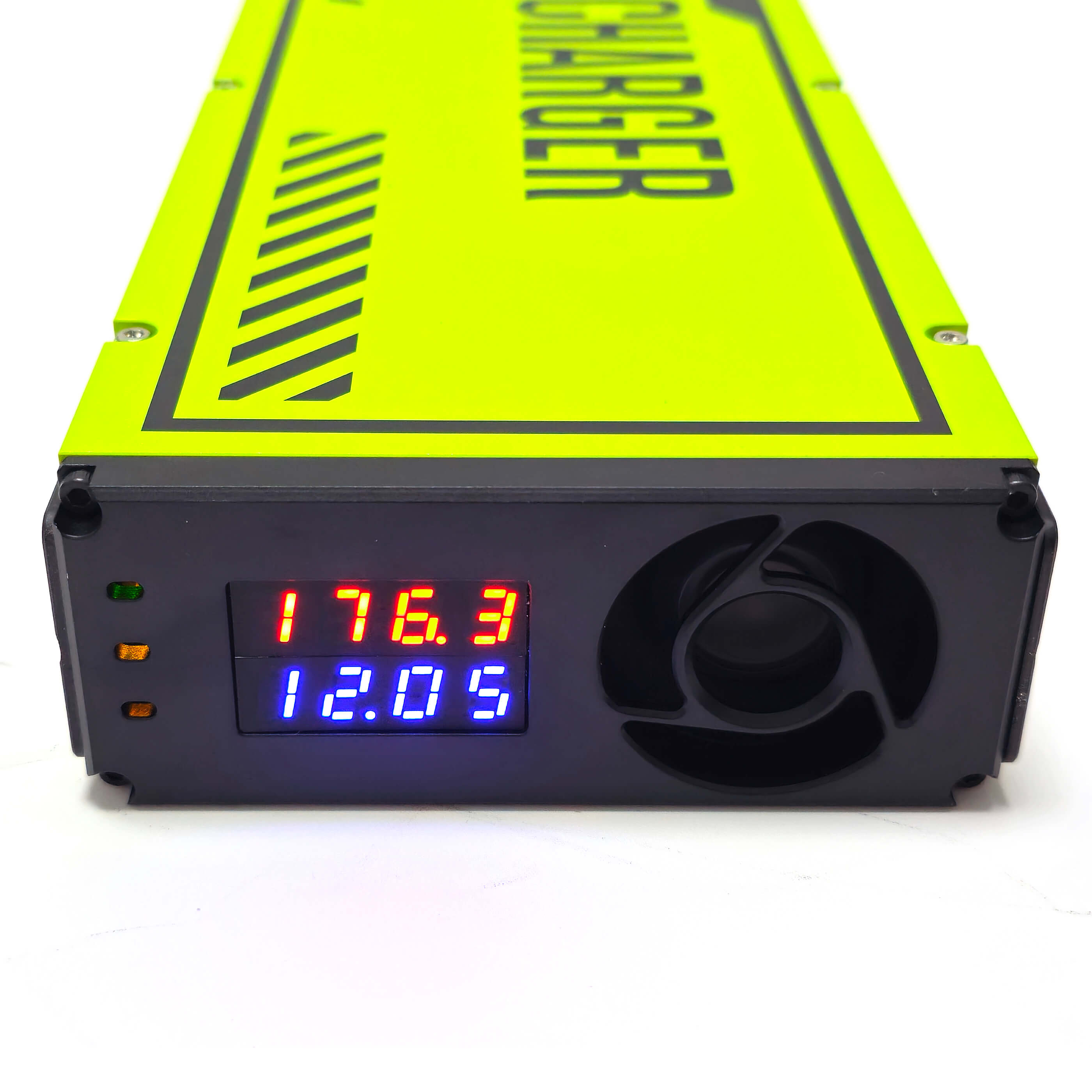

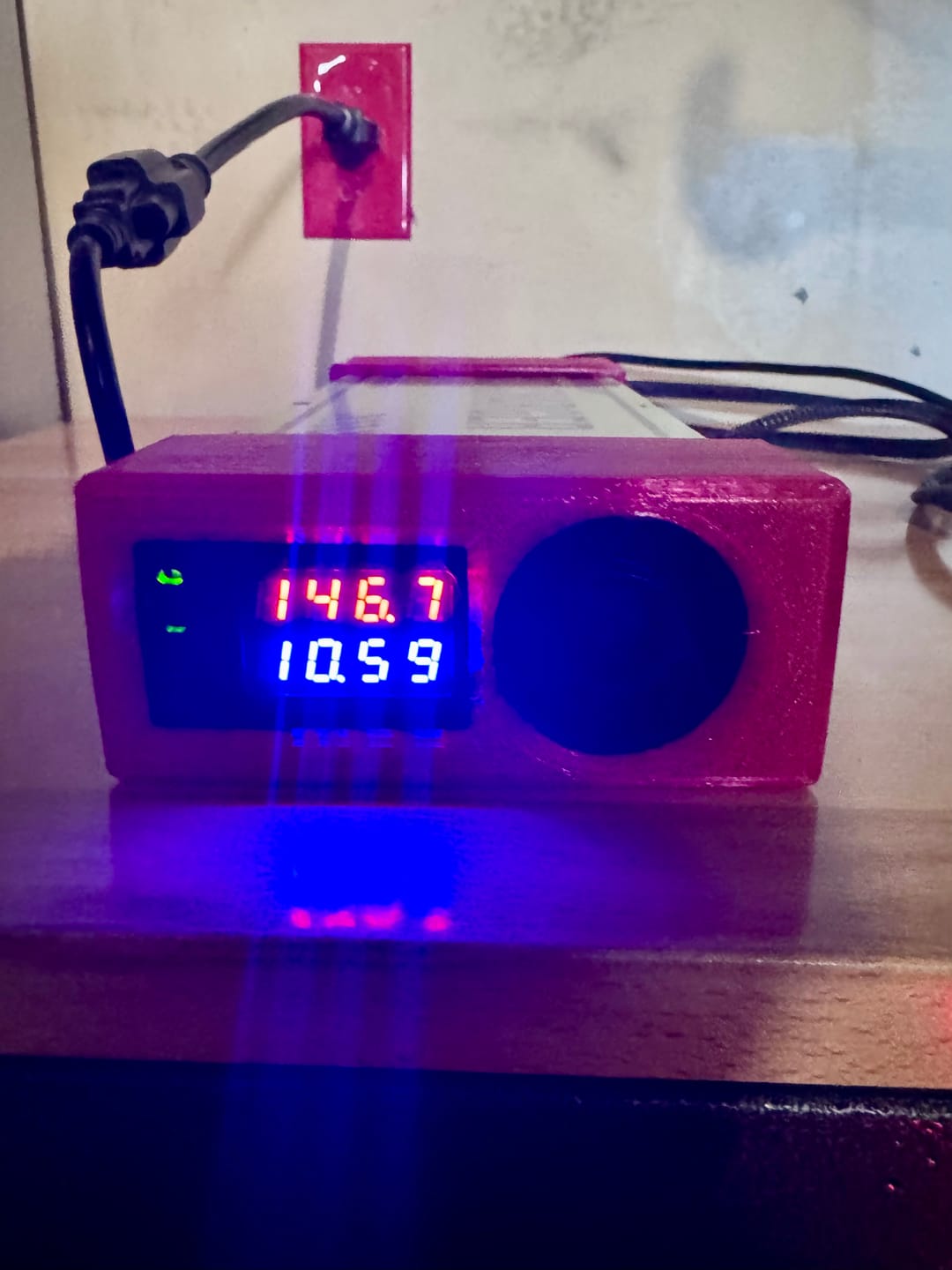

Safely plug the charger into the PEV's charge port. Monitor the LCD screen for proper charging indications.
Fine-tune Charging Current:
Using the Current Adjustment Knob set the desired charging current by rotating the knob clockwise.
Disconnecting PEV:
Safely disconnect the PEV at any time without adjusting the settings or when charging is complete.

Fast Charger HW170W (40V-178V)

Specifications
