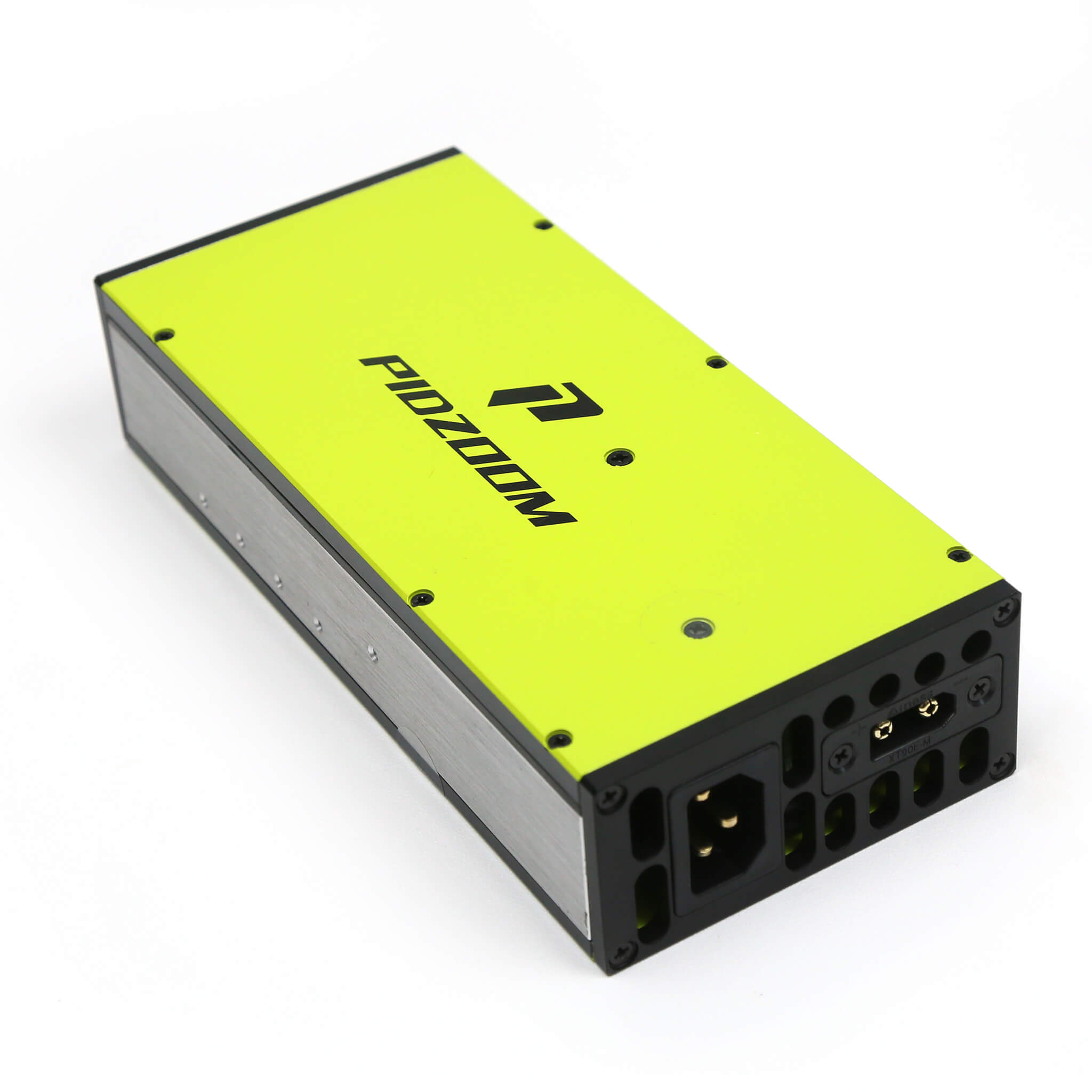

Portable Charger HW170P(50-170V)
This high-performance variable voltage fast charger was originally engineered for Huawei cellular base stations and has been optimized for a wide range of applications, including EUCs, scooters, e-bikes, and e-foiling boards.
It supports a broad input range of AC 110V–240V and is available in two variants:
1. DC 120–170V Output
- Max Current: 14A (8A at AC 110V input)
- Max Power: 2000W (1000W at AC 110V input)
2. DC 50–70V Output
- Max Current: 30A (20A at AC 110V input)
- Max Power: 2000W (1000W at AC 110V input)
Our typical shipping time is 7-10 business days.
READ BEFORE USE
instruction
- Plug In Charger: Connect the charger to a power outlet before connecting it to the battery.

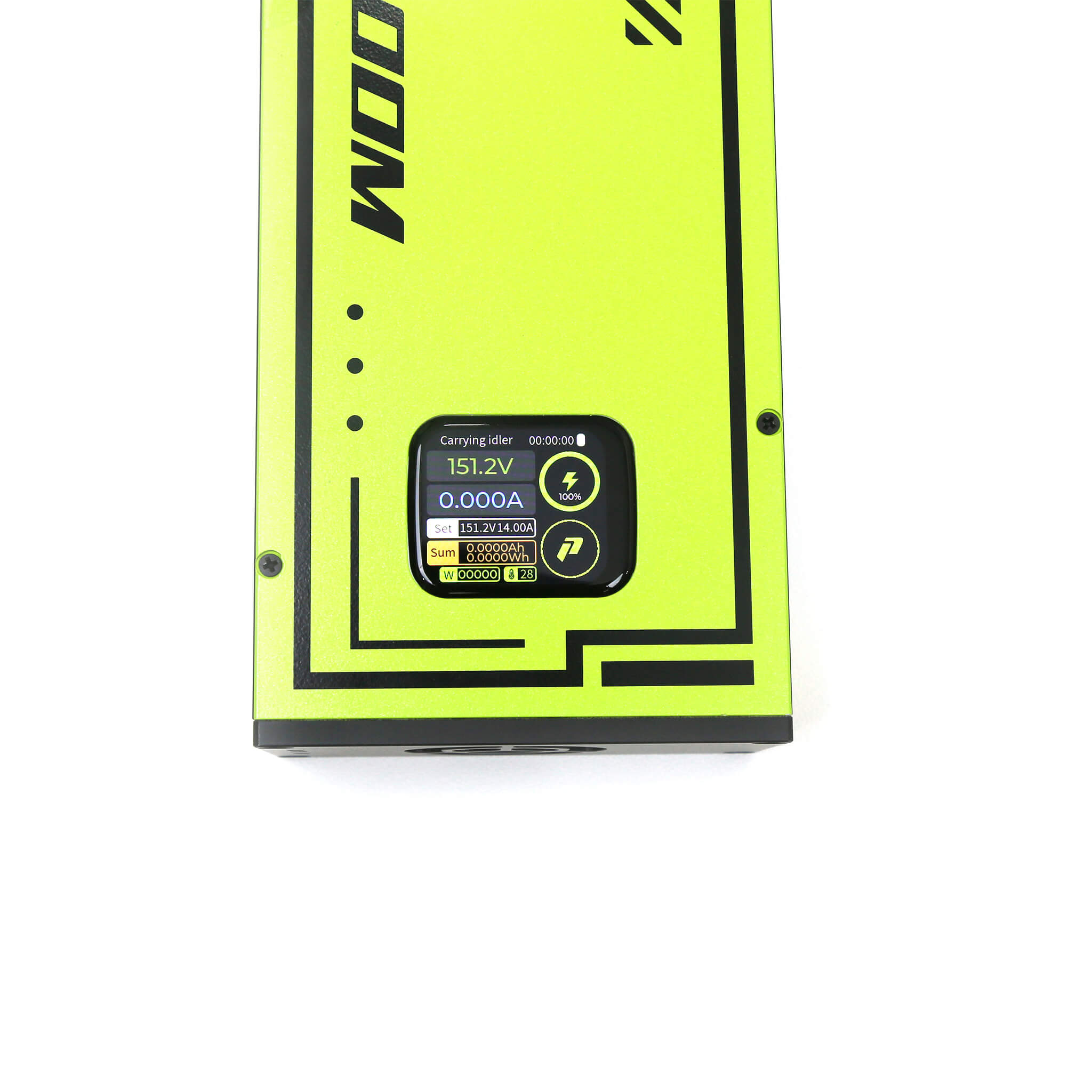

- Preset Voltage: Long press the voltage block on the display to input the desired value, then tap ✔ to save.
- Preset Current: Long press the current block on the display to input the desired value, then tap ✔ to save. Avoid surpassing the max charging rate of your battery.
- Turn on the Output: Make sure the output is on.
- Connect PEV: Plug the charger into the battery charge port and start charging.
SETTINGS:
Swipe down from the top of the screen to enter settings mode:
- Tap the "Auto Stop" button to enable the "Auto Stop Charging" feature. In this mode, if no charging current is detected within 5 minutes, the charger will automatically shut off the output.
- Tap the "Out SW" button to manually turn the charger output on or off.
- Adjust the screen brightness by sliding the brightness display bar.
- For more functions, please connect to the app.
- App download:
- Android: Download.
- IOS: Alipay. Search this link in Alipay: https://ur.alipay.com/_5X0C6rOaSroDO3kKCEieXR
Product specification
It supports a broad input range of AC 110V–240V and is available in two variants:
- Variant DC 120–170V: 14A (8A at AC 110V input)
- Variant DC 50–70V: 30A (20A at AC 110V input)
8.3*3.7*1.8 inches (211*95*46mm)
3 lbs (1.38 kg)

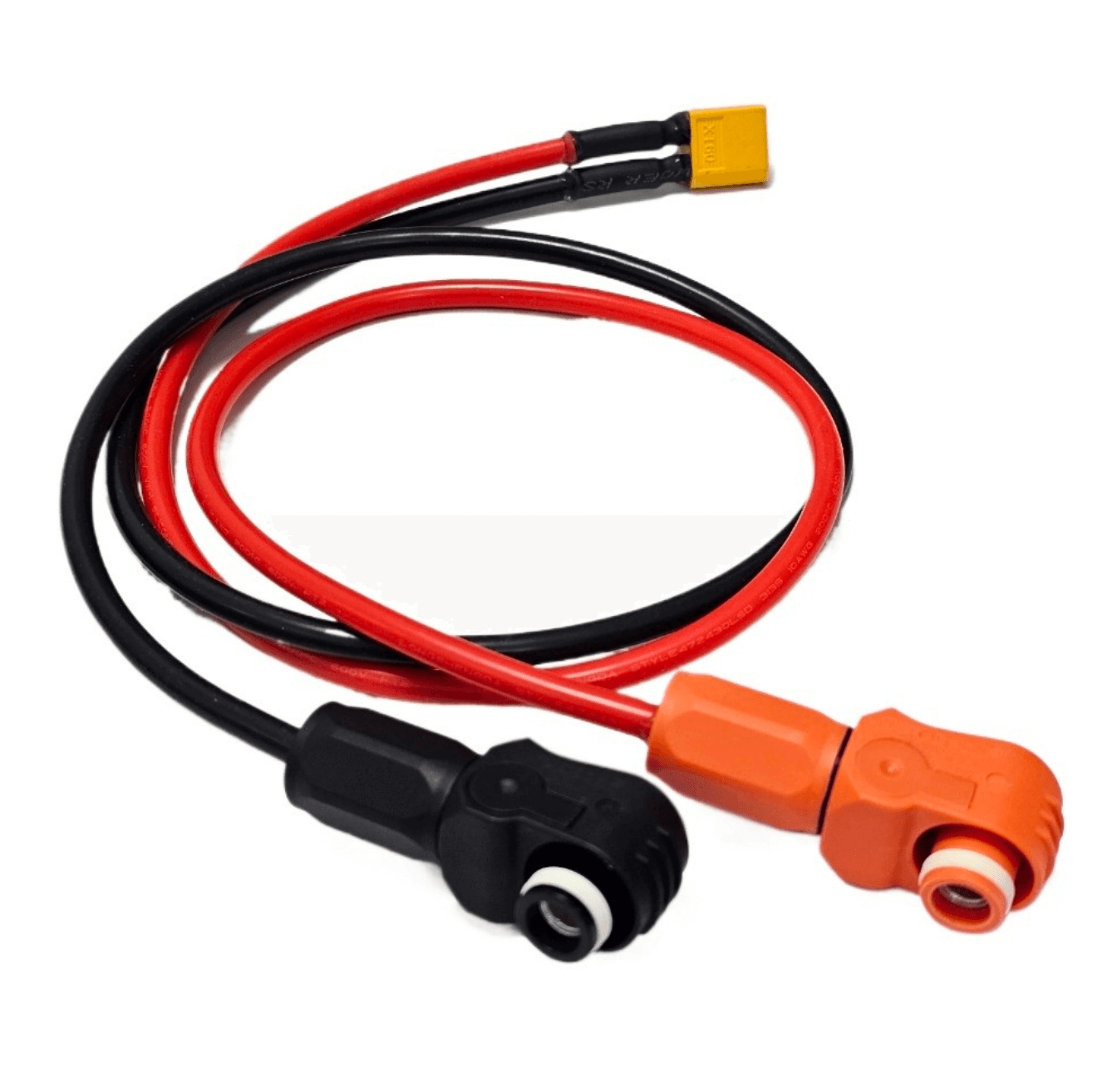

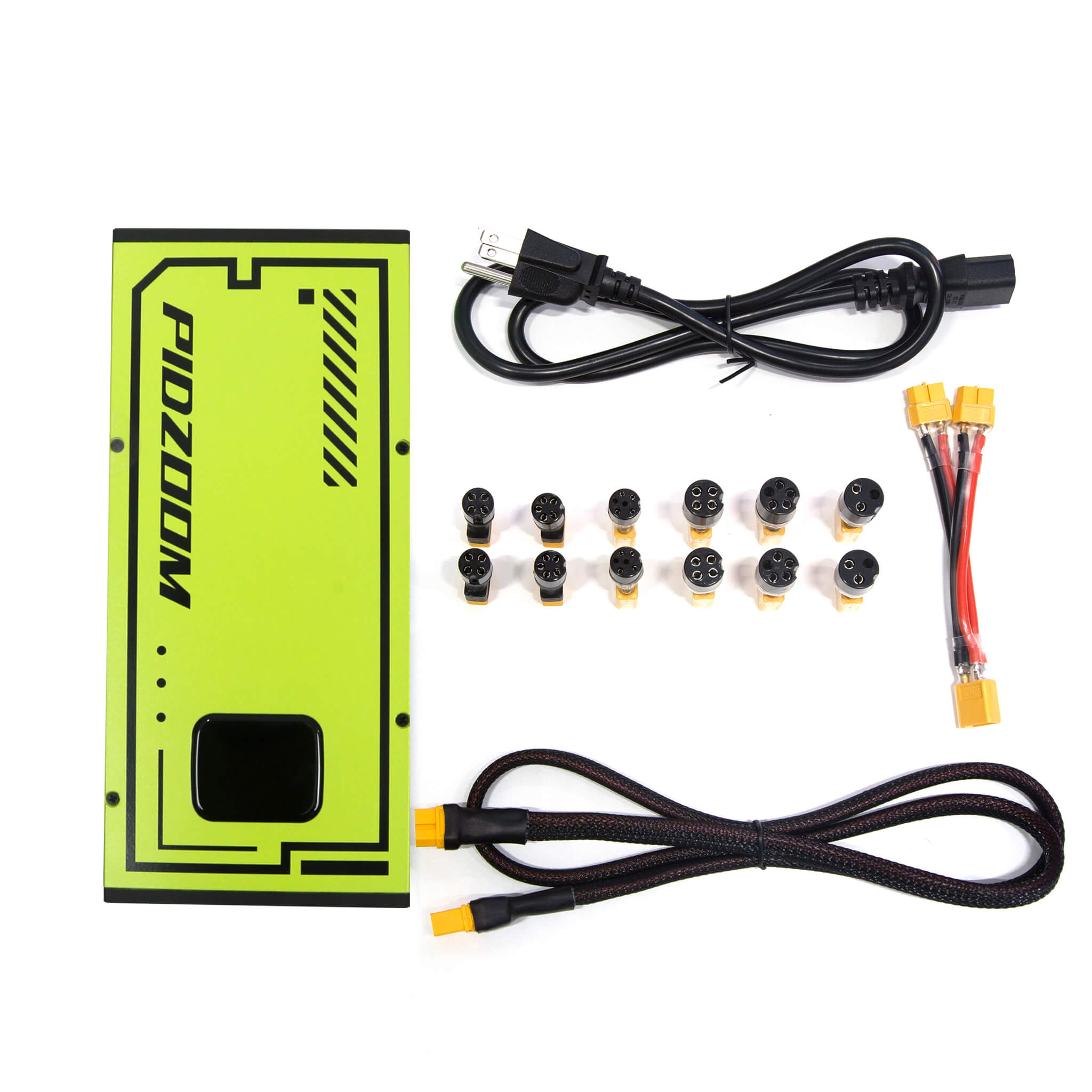

ADAPTERS LAYOUT

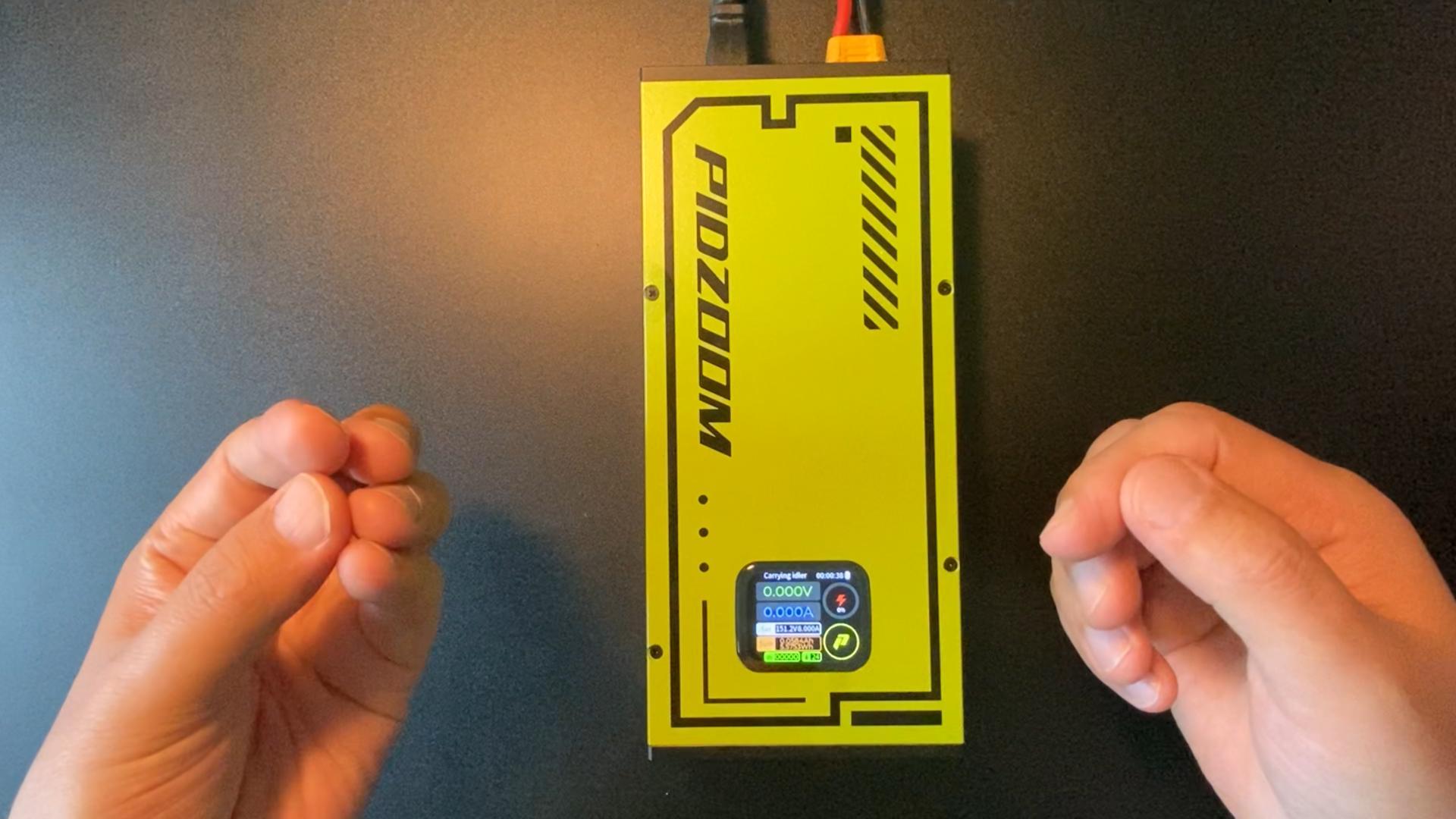

How to Use HW170P

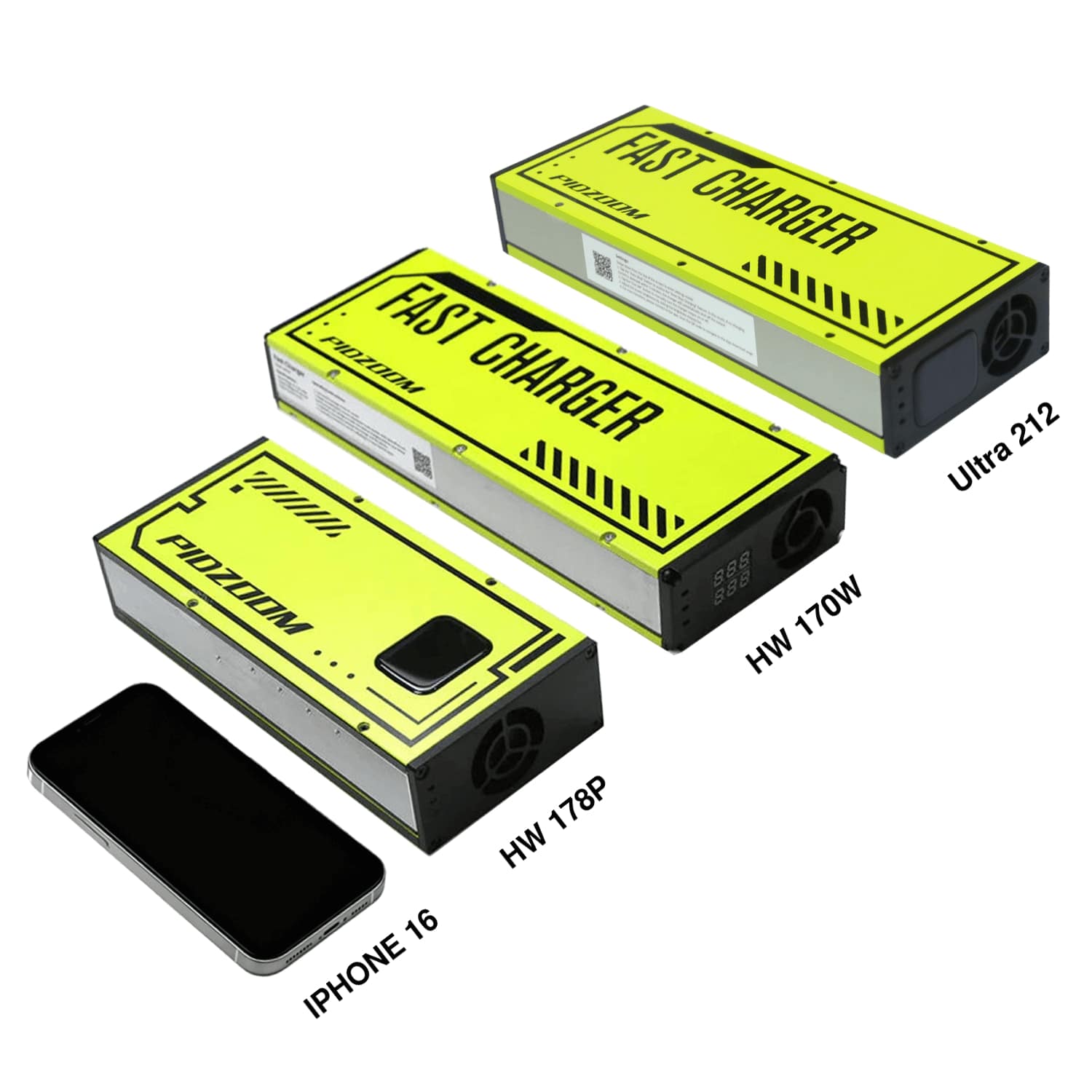

WHICH CHARGERS ARE MADE FOR YOU?
compare & pick
DC 40-178V
- DC 120-170V
- DC 50-70V
DC 84-170V
- 18A(AC 220V)
- 10A(AC 220V)
- Variant 120-170V: 14A(8A at AC 110V)
- Variant 50-70V: 30A(20A at AC 110V)
- 10A(AC 220V)
- 6A(AC 220V)
11*4.1*1.6 inches (281*105*40.8mm)
8.3*3.7*1.8 inches (211*95*46mm)
8.3*3.7*1.8 inches (211*95*46mm)
3.7 lbs (1.7 kg)
3 lbs (1.38 kg)
3 lbs (1.38 kg)
AC 110V-240V
AC 110V-240V
AC 110V-240V
- 3000W(AC 220V)
- 1500W(AC 110V)
- 2000W(AC 220V)
- 1000W(AC 110V)
- 2000W(AC 220V)
- 1000W(AC 110V)
